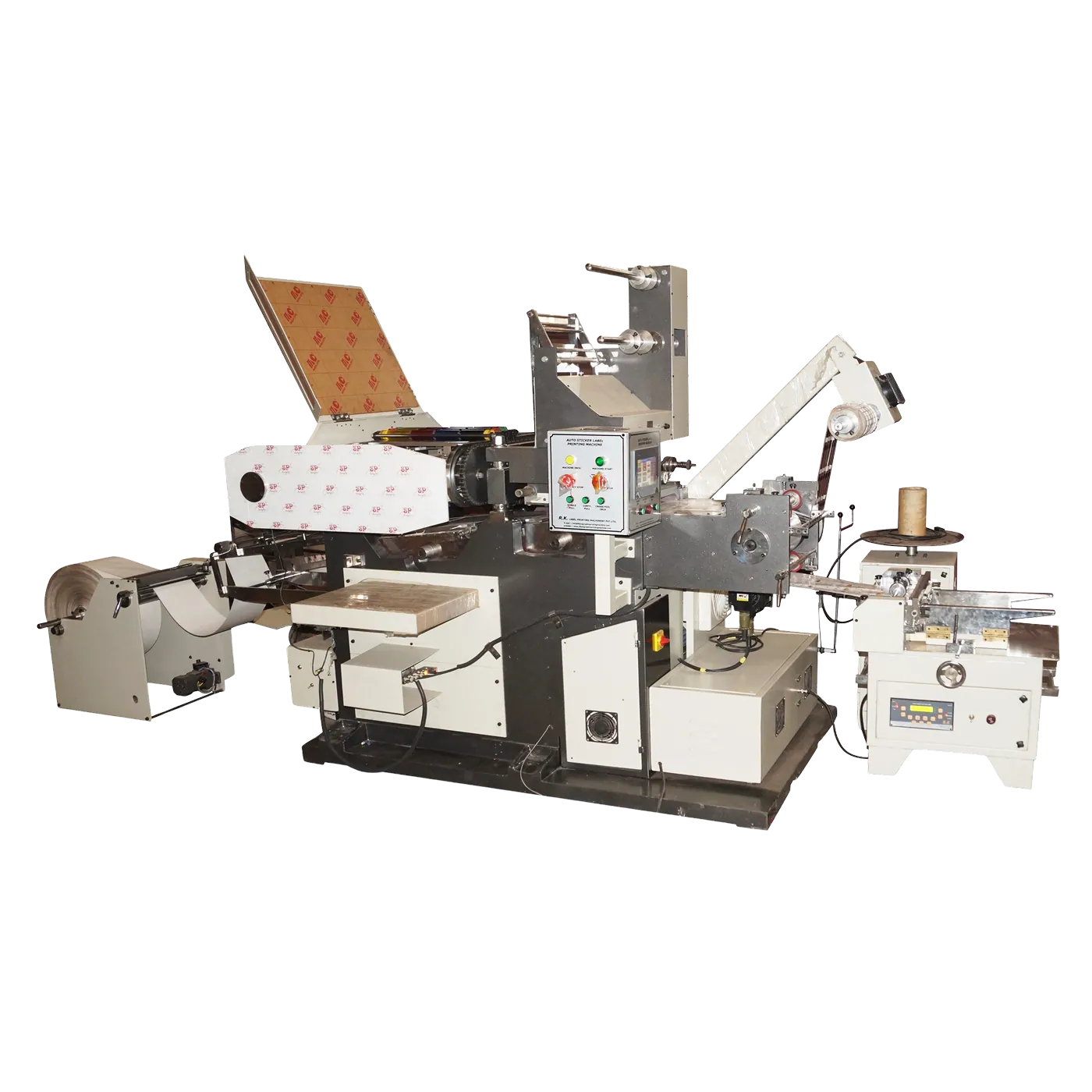

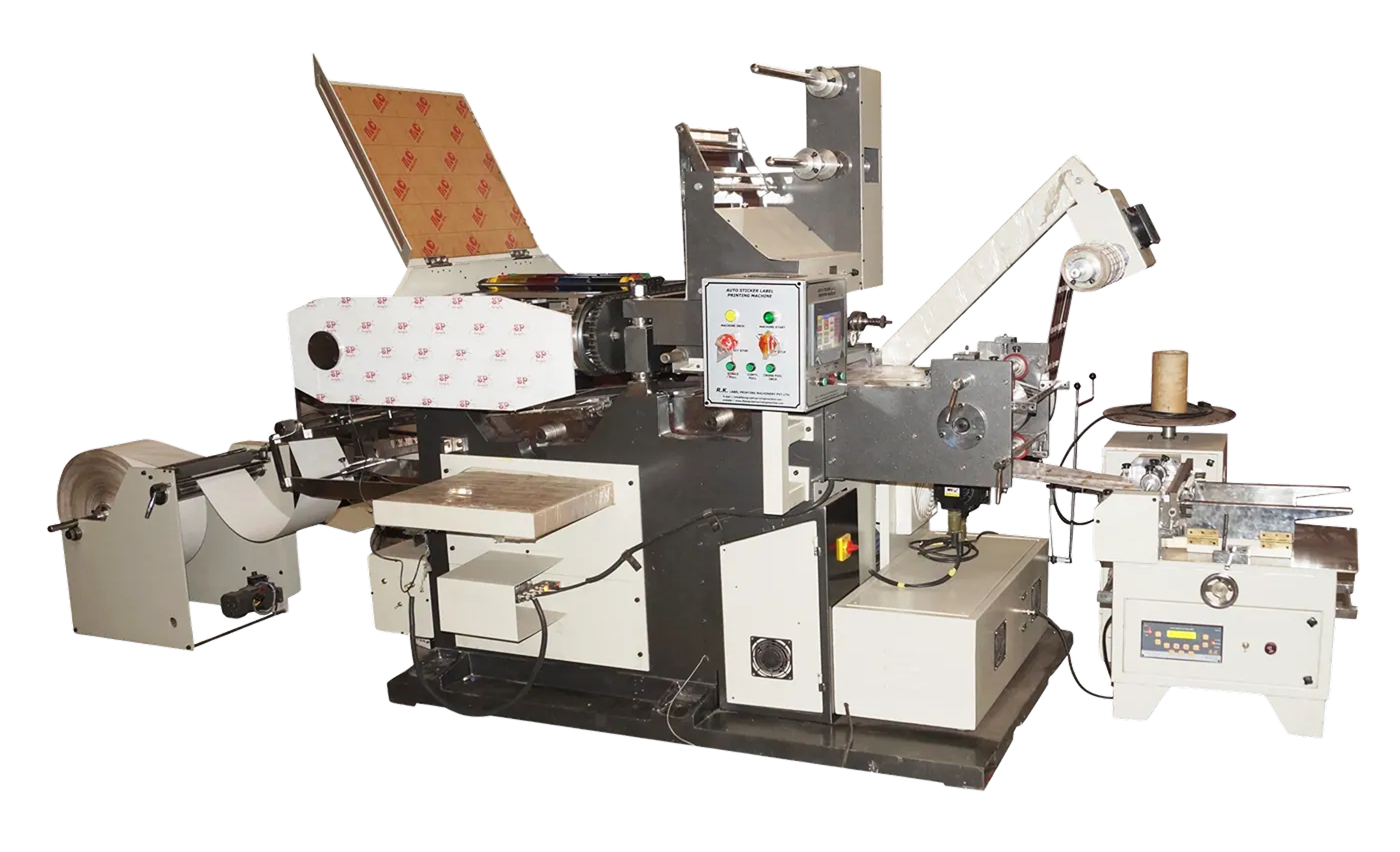

Flatbed Label Printing Machine – RK-4130/E (4 Colour Printing + Lamination + Die Cutting)

The RK-4130/E is a roll-to-roll flatbed label printing machine with three functions built into one line: four colour printing, lamination and die cutting. The web is fed intermittently, stroke by stroke, under electronic servo control, so each station works on a stationary section of the web before it advances.

The printing area is 300 mm x 410 mm in total. In four colour mode each colour has a 300 mm x 95 mm area; in three colour mode each colour has 300 mm x 130 mm. The die cut area is 300 mm x 250 mm. A 5 HP three phase AC main motor with variable speed control drives the machine, and the overall power consumption is 7.5 HP three phase.

Four Colour Printing on One Bed

The 300 mm x 410 mm printing area is divided across the colours, 300 mm x 95 mm per colour in four colour mode or 300 mm x 130 mm in three colour mode. Plates are flat and quick to mount, which keeps make-ready short on small jobs.

Inline Lamination

A lamination system on the same frame applies a protective film over the printed label before die cutting. Labels that need scuff or moisture protection are finished in the same pass.

Die Cutting Station

The die cut area of 300 mm x 250 mm cuts the laminated, printed web to label shape. Motorised waste rewinding takes the matrix away, and auto rewinding winds the finished labels.

Repeat Pass Scanner

The repeat pass scanner system reads the print mark on pre-printed material so the die cut, lamination or second pass printing lands in register.

Servo Controlled Paper Feeding

Paper feeding is controlled by an electronic servo motor system, so the web advances the same length on every stroke. The machine control is fully digital electronic with an auto stop system.

Auto Unloading and Auto Rewinding

Automatic unloading on the unwind side and automatic rewinding on the delivery side keep the operator free to watch the print instead of managing rolls.

Optional Cross Foil Stamping and Sheet Cutting

A cross foil unit for stamping can be added, with the condition that either printing or stamping runs at a time. An auto sheet cutting unit is also available as an extra for jobs delivered in sheets.

The label stock is loaded on the auto unloading unit and threaded through the machine. On each stroke the servo feed advances the web by the set length and stops. While the web is stationary, the flat printing plates press down and print the colours in their allotted areas, the lamination station applies film, and the die cutting station cuts the label shape. The web then advances again, and the cycle repeats up to 5000 times an hour.

For pre-printed rolls the repeat pass scanner reads the print mark and corrects the feed so the die cut stays in register. The waste matrix is pulled away by the motorised waste rewinding system and the finished labels are wound on the auto rewinding unit. If the optional cross foil unit is fitted, the machine is switched to stamping mode for foil work and back to printing mode afterwards.

• Short run product labels – small batches of labels for food, cosmetics, chemicals and general packaging.
• Laminated labels – labels that need a film overlay for durability, finished in one pass.
• Pre-printed roll converting – lamination and die cutting of rolls printed elsewhere, in register.
• Foil stamped labels – with the optional cross foil unit, gold or silver foil highlights on labels and tags.
• Sheeted labels – with the optional auto sheet cutting unit, labels delivered as sheets.
• Job printers – printers who need printing, lamination and die cutting from one machine and one operator.

The RK-4130/E prints and converts self-adhesive label stock and similar roll materials up to 300 mm wide, including paper and synthetic face stocks that are commonly laminated and die cut. Share your material samples with RK so the plates, lamination film and die are matched to them.

• Double Head Stamping Machine RK-HSD 3030high speed stamping and label die cutting on a flatbed frame.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995. The company runs three manufacturing units and supplies customers in 23+ countries. Its flatbed range is designed for printers who need several finishing functions on one frame, and each RK-4130/E is configured against the customer's label sizes, colour count and options rather than sold as a fixed model. RK also builds the slitting, inspection and rewinding machines that follow the printing line, so the whole setup can come from one supplier.

• Colour count: four colours at 300 mm x 95 mm each or three colours at 300 mm x 130 mm each. Check your artwork against these areas.
• Label size: the die cut area is 300 mm x 250 mm and the paper width is 300 mm.
• Lamination: if most jobs need a protective film, the inline lamination system saves a separate pass.
• Stamping: add the cross foil unit if you take foil jobs, keeping in mind that printing and stamping run one at a time.
• Delivery format: rolls by default; add the auto sheet cutting unit for sheeted labels.
• Run lengths: many short jobs suit a flatbed machine better than a rotary press because plate changes are quick.

The price of the RK-4130/E depends on the colour configuration, the lamination arrangement, the optional cross foil unit, the optional auto sheet cutting unit, die sets and other options. Prices are quoted ex-works Ahmedabad with GST at 18% applicable; engineer travel and stay for installation and training at your site are borne by the customer. Share your label sizes, colour count and the finishing you need with RK and the engineering team will recommend a configuration and quote against it.
