RK PCC Automatic Core Cutting Machine – Pneumatic Paper Core Cutter

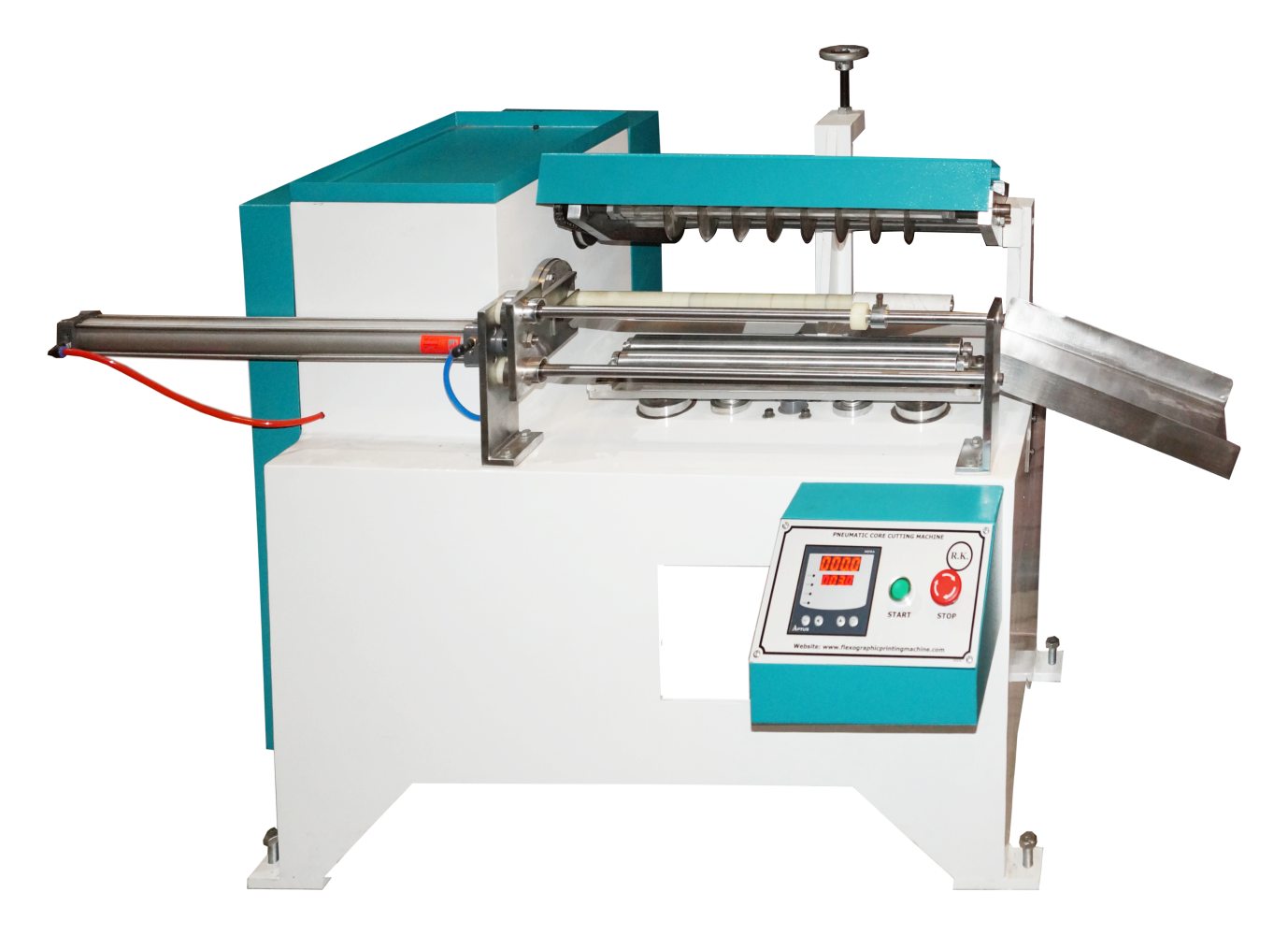

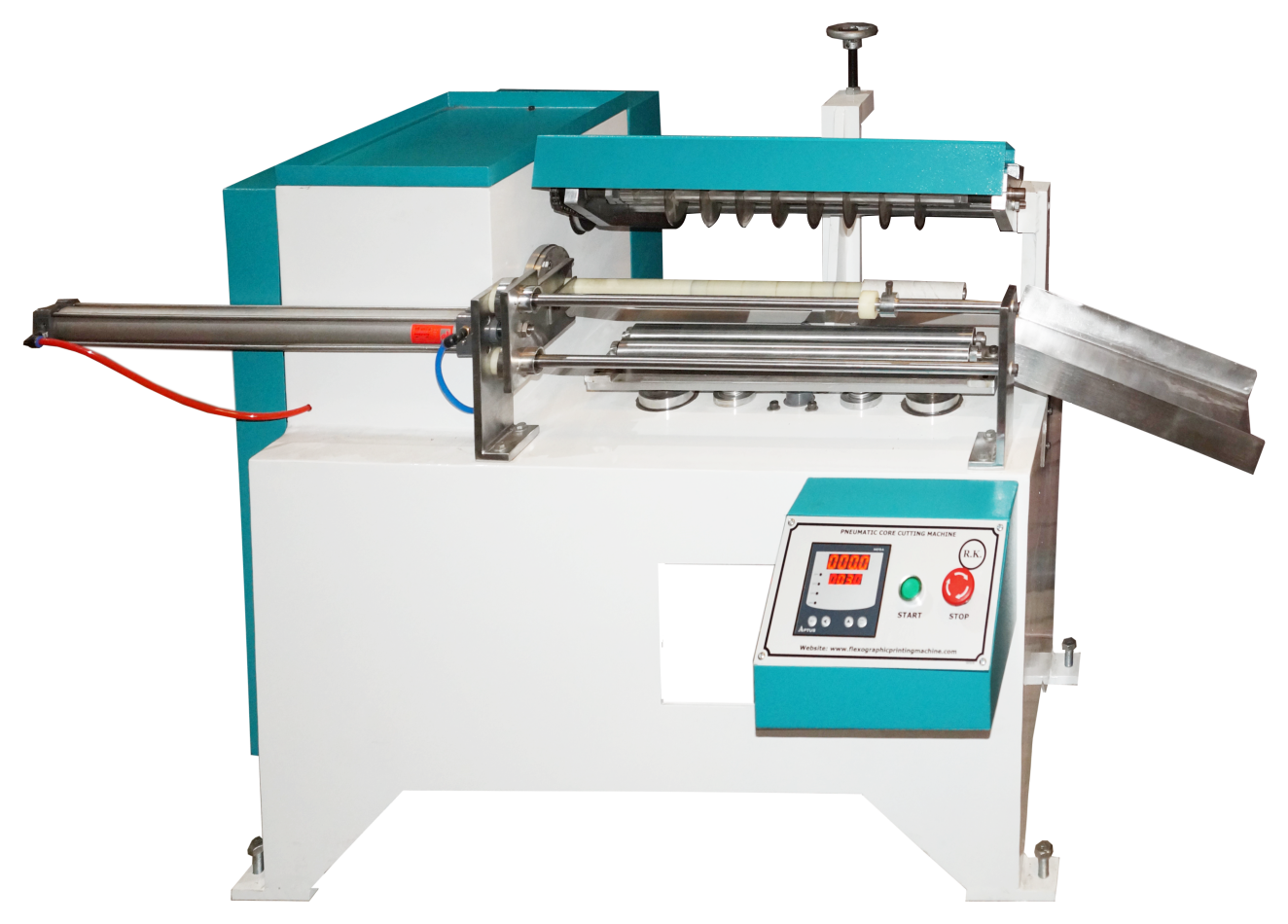

The RK PCC is a paper core cutter that uses pneumatic cylinders for the three movements that a manual cutter leaves to the operator: pushing the blades into the core, supporting the core from below while it is cut and releasing the cut pieces afterwards. The core is held on a shaft of 500 mm length with a working length of 450 mm, and the cutting is performed by rotary blades whose positions are fixed by spacers.

Eight cutting blades and about 110 spacers come with the machine, so the operator can set up several widths across the shaft in one go. A digital timer sets how long the blades stay in the core, and the machine runs on a 2 HP three-phase supply. The frame is compact at roughly 4.5 ft long, 2.5 ft wide and 4 ft high.

Suitable for 1 inch, 1.5 inch and 3 inch Cores

The three core sizes used across label, tape and paper converting are all covered. The bottom support is adjusted as per the core size so that each diameter is held properly during the cut.

Rotary Blade Cutting With Spacer Set Positions

Cutting is done by rotary blades whose positions along the shaft are fixed with spacers. The spacers set the gaps between the blades, so width adjustment is semi-automatic. Once the spacers are set for a job, every core loaded gives the same widths.

Pneumatic Cutting Depth Control

One pneumatic cylinder controls the movement of the blade shaft, and therefore the cutting depth. The blade goes to the same depth every time, without the operator leaning on a lever.

Bottom Support During Cutting

A second pneumatic cylinder brings a bottom support under the core while it is cut, so the core does not flex under the blades. This is what keeps the cut edges clean and square.

Auto Unloading of Cut Cores

The third pneumatic cylinder releases the cut cores from the shaft when the cut is complete. The operator collects the pieces and loads the next core.

Digital Timer Control

The cutting duration is set on a digital timer. The machine cuts for the set time and stops, which removes guesswork and makes the result independent of who is operating it.

Blades and Spacers Supplied With the Machine

Eight cutting blades and about 110 spacers are provided, which is enough to set up a range of common roll widths without buying extra tooling first.

The operator first sets up the shaft for the job: rotary blades are placed along the blade shaft with spacers between them so that the gaps match the roll widths required, and the bottom support is adjusted for the core diameter in use, 1, 1.5 or 3 inch. The cutting time is entered on the digital timer. A full length core, up to 450 mm of working length, is then slid on to the core holding shaft.

On starting the cycle, the bottom support cylinder rises to hold the core, the blade shaft cylinder brings the rotating blades into the core to the set depth and the blades cut for the timed duration. When the timer runs out, the blades withdraw and the third cylinder releases the cut cores from the shaft. The operator removes the pieces, loads the next core and repeats. Because the widths are fixed by the spacers, there is nothing to measure between cores.

• Label converters – cutting 1 inch, 1.5 inch and 3 inch cores to the widths of slit label rolls.
• Thermal paper and POS roll manufacturers – producing cores for POS and ATM roll widths in volume.
• Tape converters – core cutting for BOPP, masking and other tape rolls.
• Paper and film slitting houses – matching cores to every slit width without hand cutting.
• Packaging units – in-house core preparation for rewinding and slitting lines.

The RK PCC is designed for paper cores in 1 inch, 1.5 inch and 3 inch sizes, which are the standard cores used for label stock, thermal paper, tapes and film rolls. If you use another core diameter or a heavier wall thickness, tell RK before ordering so the bottom support and blade set can be checked against it.

• Servo Core Cutting Machinefully servo controlled digital auto core cutting for the same 1, 1.5 and 3 inch cores.
• Manual Core Cutting Machine (RK MCC)motorised rotary blade cutter with manual cutting for lower volumes.
• Label Slitting With Turret Rewindingthe slitter rewinder whose rolls these cores are cut for.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, runs three manufacturing units and has customers in 23+ countries. RK offers core cutting at three levels, manual, pneumatic automatic and servo, so a converter buys the level of automation that matches their daily core count. The core cutters are built alongside RK's slitters and rewinders, so core sizes and widths are matched to the rest of the line and support comes from one manufacturer.

• Core sizes: the PCC handles 1 inch, 1.5 inch and 3 inch. List every core diameter you use.
• Core length: the working length is 450 mm. Longer parent cores will need to be discussed with RK.
• Daily volume: a few cores a day can be cut on the manual RK MCC; a steady stream of cores across every shift justifies the pneumatic PCC or the servo machine.
• Width repeatability: spacer set blades give the same width every time; if your customers reject rolls for core overhang, that repeatability pays for itself.
• Operator effort: pneumatic depth control, bottom support and auto unloading remove the physical work from the operator.
• Utilities: the PCC needs a compressed air supply for its three pneumatic cylinders and a 2 HP three-phase electrical supply.

The price of the RK PCC depends on the configuration supplied, including any extra blade and spacer sets or changes to the shaft for your core sizes. RK quotes ex-works Ahmedabad with GST at 18% applicable. Engineer travel and stay for installation and training at your site are borne by the customer. Share your core sizes, core lengths and the number of cores you cut per day with RK, and the team will recommend the right machine and quote against it.
