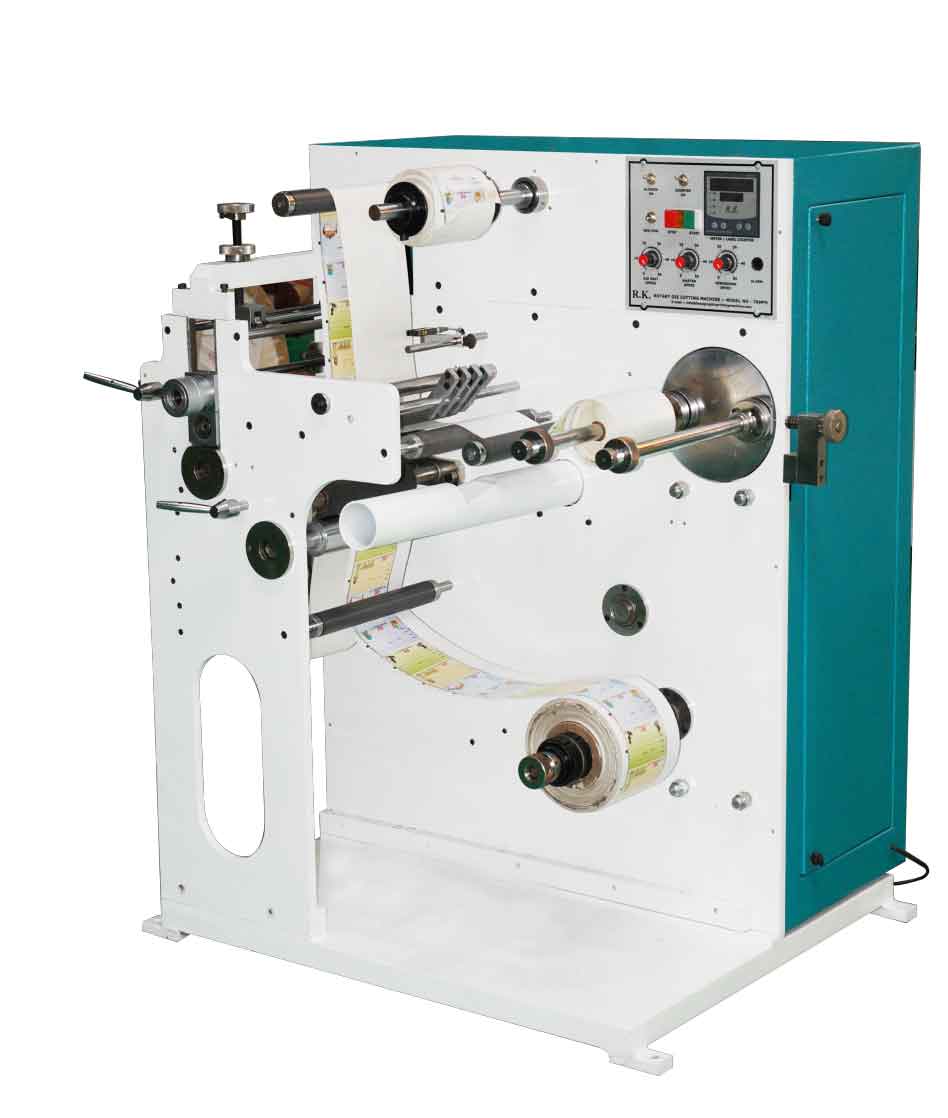

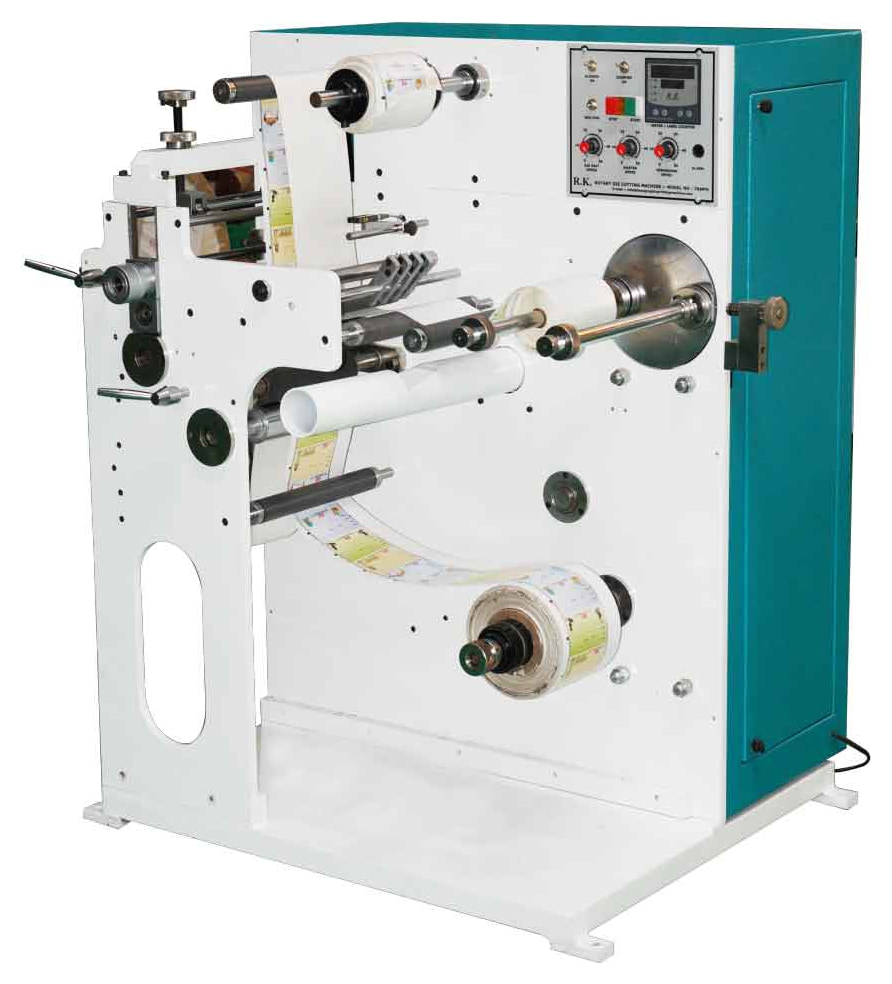

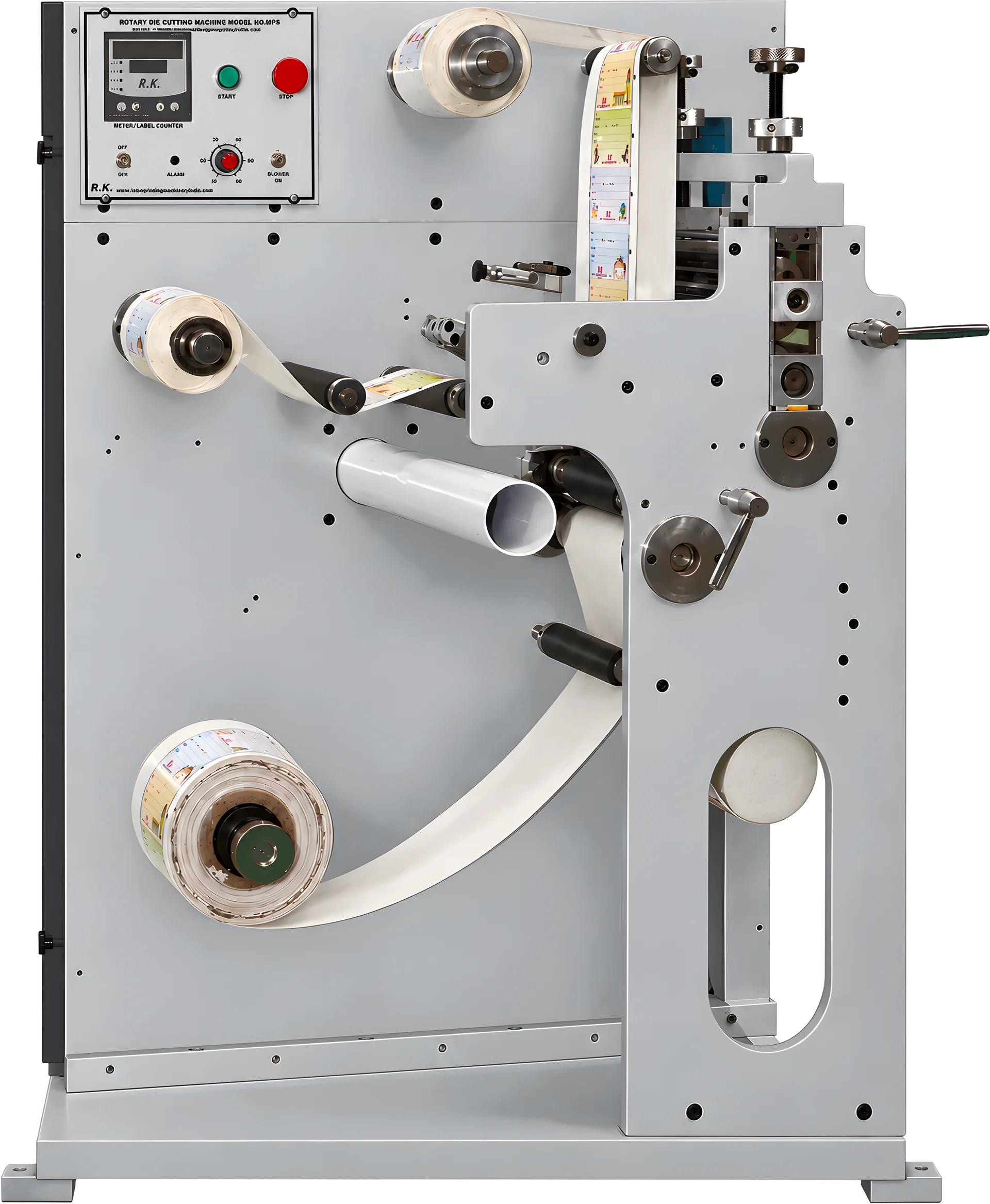

RK-TR-MPS-250 Micro Rotary Die Cutting Machine With Turret Rewinding (Manual)

The RK-TR-MPS-250 is a roll to roll micro rotary die cutting and slitting machine with manual turret rewinding. It uses the same cutting principle as full-size rotary die cutters: a rotary die on a cylinder turns against an anvil roller and cuts the label shape through the face stock as the web runs continuously, leaving the liner whole. The single rotary die cutting unit keeps die and anvil aligned so cutting depth is even across the 250 mm web.

After cutting, the waste matrix is stripped and wound online, the web is slit into lanes, and the lanes wind on a turret rewinder. On this model the turret is indexed manually – when a set of rolls is complete, the operator rotates the turret to bring fresh cores into position. That keeps the machine simple and low in cost while still allowing quick changeover between rolls. Both unwinding and rewinding have their own 1 HP single-phase motor with VFD.

Compact 250 mm Web Width

Built for narrow rolls, the MPS-250 takes paper up to 250 mm wide and fits into a space of roughly 4 ft by 3.5 ft, which suits small units and in-house label rooms.

Single Rotary Die Cutting Unit

The die and anvil sit in one unit, giving an even cut across the web and straightforward die changes.

Manual Turret Rewinding on Collator Shafts

The turret carries 1", 1.5" and 3" changeable collator rewinding shafts, two of each. The operator indexes the turret by hand once a roll is complete, so new cores are ready without threading the machine again.

Online Slitting With Air Blower

An online slitting unit divides the die-cut web into lanes in the same pass, and an air blower carries the edge trim away from the rolls.

Online Waste Matrix Rewinding

The waste skeleton is wound continuously as it is stripped, keeping the finished lanes clean and the operator free to manage the rewind.

Label and Meter Count With Auto Stop

The operator sets a label count or roll length; the machine stops automatically when it is reached, so every roll carries the same quantity.

Single-Phase VFD Drives

Separate 1 HP single-phase motors with VFDs drive the unwinding and rewinding units. Total power consumption is 2.5 HP single phase, so no three-phase supply is needed.

Forward and Reverse Rewinding

Rewinding direction is selected by button, so labels can be wound to unwind the way the customer's applicator or printer needs.

The roll, up to Ø600 mm, is mounted on the 3" mechanical shaft of the unwinding unit and the gauge unit is set to guide the web edge. The 1 HP unwinding motor with VFD releases the web under controlled tension into the single rotary die cutting unit, where the rotary die cuts the label outline through the face stock on each revolution. The waste matrix is peeled from the liner and wound on the online waste rewinding unit.

The die-cut web then passes the online slitting unit, where knives divide it into lanes and the air blower removes the trim. The lanes wind on the turret rewinder on the selected collator shafts. When the label or meter counter reaches the target the machine stops; the operator indexes the turret by hand, bringing the second set of shafts into position, removes the finished rolls from the first set, fits new cores and restarts. Rewinding direction is chosen by button before the job starts.

• Small label printers – narrow-web label converting where a full-size die cutter is more than the volume needs.
• Start-up label units – a first rotary die cutter that runs on single-phase power.
• In-house packaging departments – cutting and slitting pre-printed label rolls on site.
• Barcode and blank label rolls – plain stock die cut and slit for thermal printer users.
• Sticker and decal rolls – kiss-cut stickers up to 250 mm web width.

The MPS-250 is intended for self-adhesive label stock on a release liner up to 250 mm wide – chromo paper, thermal and thermal-transfer papers and synthetic face stocks such as PP and PET. Die type, anvil pressure and slitting knives are matched to the material, so let RK know the stocks you plan to run before the machine is configured.

• RK PTR-320 – High-Speed Rotary Die Cutting With Auto Turret Rewinderthe 320 mm, 120 m/min model with automatic stepper-motor turret indexing.
• RK PS-320 – Die Cutting With Up & Down Rewinding320 mm rotary die cutting with online slitting and an up and down rewinder.
• RK VANDANA-24 – Die Cutting With Sheet Cuttingrotary half cut plus online rotary sheet cutting with conveyor delivery.

RK Label Printing Machinery Pvt. Ltd. has manufactured label printing and converting machinery in Ahmedabad, Gujarat since 1995, across three manufacturing units, for customers in 23+ countries. The MPS-250 is built on the same rotary die cutting design as RK's larger machines, scaled to a 250 mm web and single-phase power. RK also supplies the magnetic cylinders, flexible dies and rubber rolls the machine uses, and the same team handles installation, training and spares.

• Web width: 250 mm maximum – check your widest roll.
• Power supply: 2.5 HP single phase, useful where a three-phase connection is not available.
• Speed: 80 m/min – compare with your monthly metres of label stock.
• Turret indexing: manual on the MPS-250. If you need automatic indexing for continuous running, look at the RK PTR-320.
• Core sizes: 1", 1.5" and 3" collator shafts, two of each, are supplied.
• Floor space: about 4 ft long by 3.5 ft wide.

The price of an RK-TR-MPS-250 depends on the configuration – rotary dies and cylinders, slitting knives and any options. RK quotes prices ex-works Ahmedabad with GST at 18% applicable. Engineer travel and stay for installation and training at your site are borne by the customer. Share your label sizes, materials, lane count, core sizes and expected output, and RK will recommend the configuration and quote against it.
